Viewmaster monitor arm - desk 592

Viewmaster monitor arm - desk 592
Viewmaster monitor arm - desk 592 detail 2
Viewmaster monitor arm - desk 592 detail 3
Viewmaster monitor arm - desk 592 detail 4
Viewmaster monitor arm - desk 592 detail 5
57.592
Legacy product

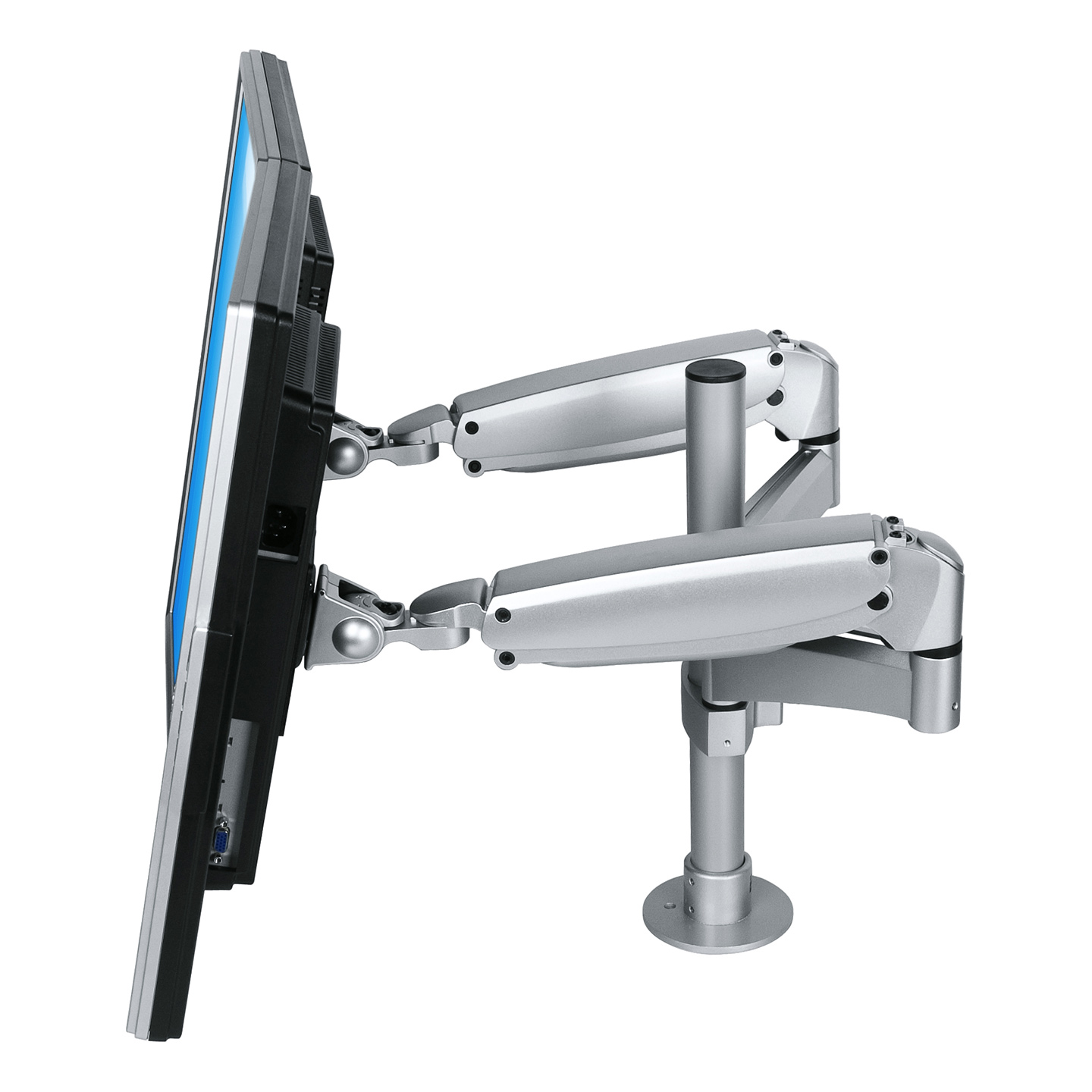

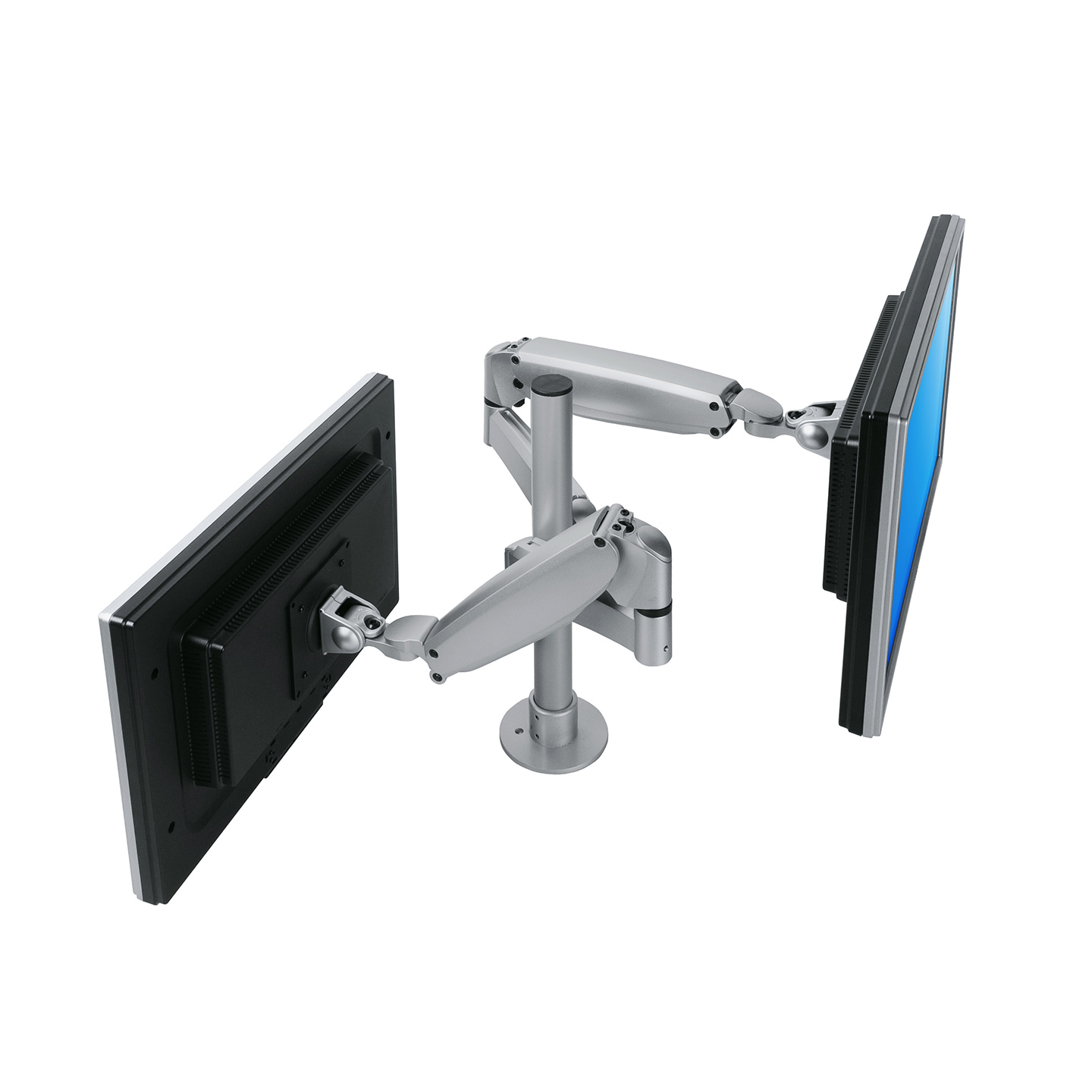

Viewmaster monitor arm - desk 592

Each user can independently adjust the gas-assisted monitor arm by depth and height to find their own optimal ergonomic position. An efficient face-to-face workspace solution that uses minimum space to give you maximum functionality and can also be used with double monitors.

Article properties
Monitor check
Documentation
Attachments
Options
Specifications
  • Dynamic height adjustment range of 305 mm (12,0")
  • Independent depth adjustment
  • Partly integrated or concealed cable management
  • Main components made of aluminium
  • VESA MIS-D 75 x 75/100 x 100 mm compatible
  • Monitor: tilt +90°/-90°, swivel +90°/-90°, rotate +90°/-90°
  • Arm: swivel +90°/-90°
  • Weight capacity min. 4,5 - max. 10 kg (9,9 - 22 lb) per monitor
  • Desk mount not included
  • Monitor size limit: height 1286 mm (50,6")
  • Ideal for face-to-face workstations
  • Built-in SUSPA® gas spring
  • Listed weight capacity will vary when mounting monitors that are deeper than 25 mm (1,0") or have an off-centre VESA mount position
Height adjustment range 305 mm (12,0")
Swivel range +90°/-90°
Tilt range +90°/-90°
Rotation range +90°/-90°
Maximum supported width of monitor 910 mm (35,8")
Maximum supported height of monitor 1286 mm (50,6")
VESA compatability 75 x 75/100 x 100
Maximum supported weight of monitor (2x) 4,5 - 10 kg (9,9 - 22 lb)

Monitor check

Is this product suitable for your monitor? Do a quick check by filling in its details below.

For curved monitors, the tool may not provide a fully accurate recommendation. To ensure the right match, we are happy to provide personalized adivce. Please contact us.

If you do not find your monitor in this selection, please contact our support department.

1
2
Documentation

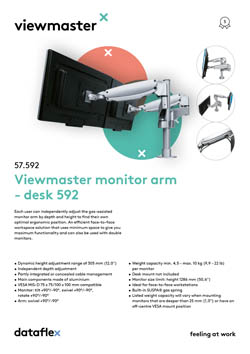

Product sheet
Product sheet
Product sheet

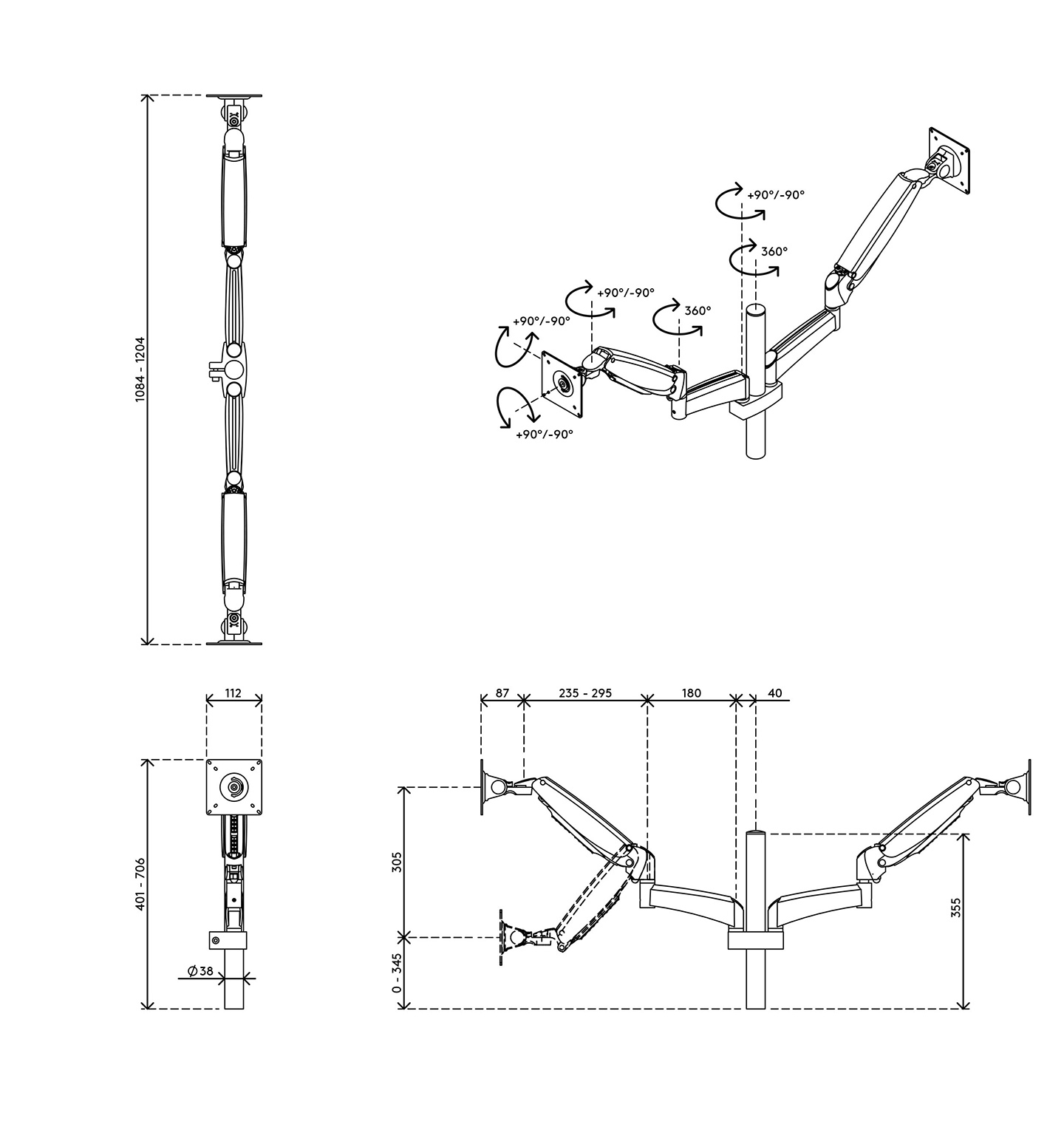

CAD data
CAD data
CAD data

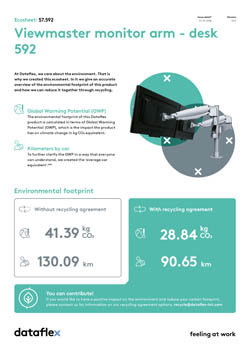

Ecosheet
Ecosheet
Ecosheet
Warranty
Warranty up to 15 years after registration
Up to 15 years warranty after registration*
SKU information
Product bar code
805410575922
Product colour
silver
Packaging dimensions
490 x 375 x 145 mm
Packaging weight
6,715 kg
Attachments
53.962 The bolt-through desk mount is the strongest and best-looking way to mount Viewmaster monitor arms to your desk. It can also be mounted on most cable management cut-outs in a desk.

53.962

Viewmaster bolt through desk - mount 962
53.862 If your desk doesn't have cable management cut-outs and an M8 bolt hole is not an option, use this sturdy desk clamp mount instead.

53.862

Viewmaster desk clamp - mount 862
Options
51.093 Decrease installation costs in projects, minimize workstation downtime, or simply make (un)mounting a monitor a breeze. This quick release mount fits between any flat screen monitor arm and monitor with a VESA MIS-D 75 x 75/100 x 100 mount.

51.093

Addit quick-release mount - option 093
44.310 Offering more protection within the workspace, the Addit hygiene screen creates a safer division between you and whomever is on the other side of your monitor. The screen is easily mounted on your monitor arm using the same VESA connection that keeps your monitor in place. Because of that, it’s always in the perfect position for your protection and that of your colleagues. Ideal for single screen set-ups and sit-stand desks. What if this solution is temporary? Become part of the Dataflex return program and we’ll give the product a second life. We will make sure that we rethink and repurpose the product or recycle it in a safe, reliable and eco-friendly manner. In exchange for returning the product you will receive a voucher for your next purchase with Dataflex.

44.310

Addit hygiene screen 310
34.462 This Addit cable guide bundles and runs your cables from desk to floor. The extra length makes it the ideal solution for sit-stand workstations, and it’s easy to adjust by adding/removing components. The magnet mount ensures the cable guide stays in place, while the weighted floor plate provides even greater stability. Produced from 100% recycled PP. Looking for a perfect match with your interior? We can customize the color and length to fit your exact needs.

34.462

Addit cable guide sit-stand 130 cm set – desk 462
31.452 This Addit cable protector makes it easy to safely get cables across to where you need them to be. The sturdy aluminium construction protects both people and cables by keeping them out of each other’s way. Additionally, the hinged cover makes it easy to place, remove or switch out any cable in a matter of seconds. Also available in the following lengths:

31.452

Addit cable protector 118 cm - straight 452
