Viewmaster monitor arm - desk 172

Viewmaster monitor arm - desk 172
Viewmaster monitor arm - desk 172 detail 2
Viewmaster monitor arm - desk 172 detail 3
Viewmaster monitor arm - desk 172 detail 4
Viewmaster monitor arm - desk 172 detail 5
57.172
Legacy product

Viewmaster monitor arm - desk 172

Specifically engineered for heavier curved monitors.

Dynamic height adjustment and independent depth adjustment let each user find their own optimal ergonomic position. A high-end design for (super) ultra-wide curved screens. The heavy-duty gas spring- and spring-loaded monitor tilt mechanism allow for great ease of movement.

When using (super) ultra-wide curved monitors please check our "monitor check" or contact us for help.

Article properties
Monitor check
Documentation
Options
Specifications
  • When using (super) ultra-wide curved monitors please check our "monitor check" or contact us for help
  • Dynamic height adjustment range of 305 mm (12,0")
  • Independent depth adjustment
  • Partly integrated or concealed cable management
  • Main components made of aluminium
  • VESA MIS-D 75 x 75/100 x 100 mm compatible
  • Monitor: tilt +90°/-55°, swivel +5°/-5°, rotate +90°/-90°
  • Arm: swivel 360°
  • Weight capacity min. 8 - max. 18 kg (18 - 40 lb) for standard screens

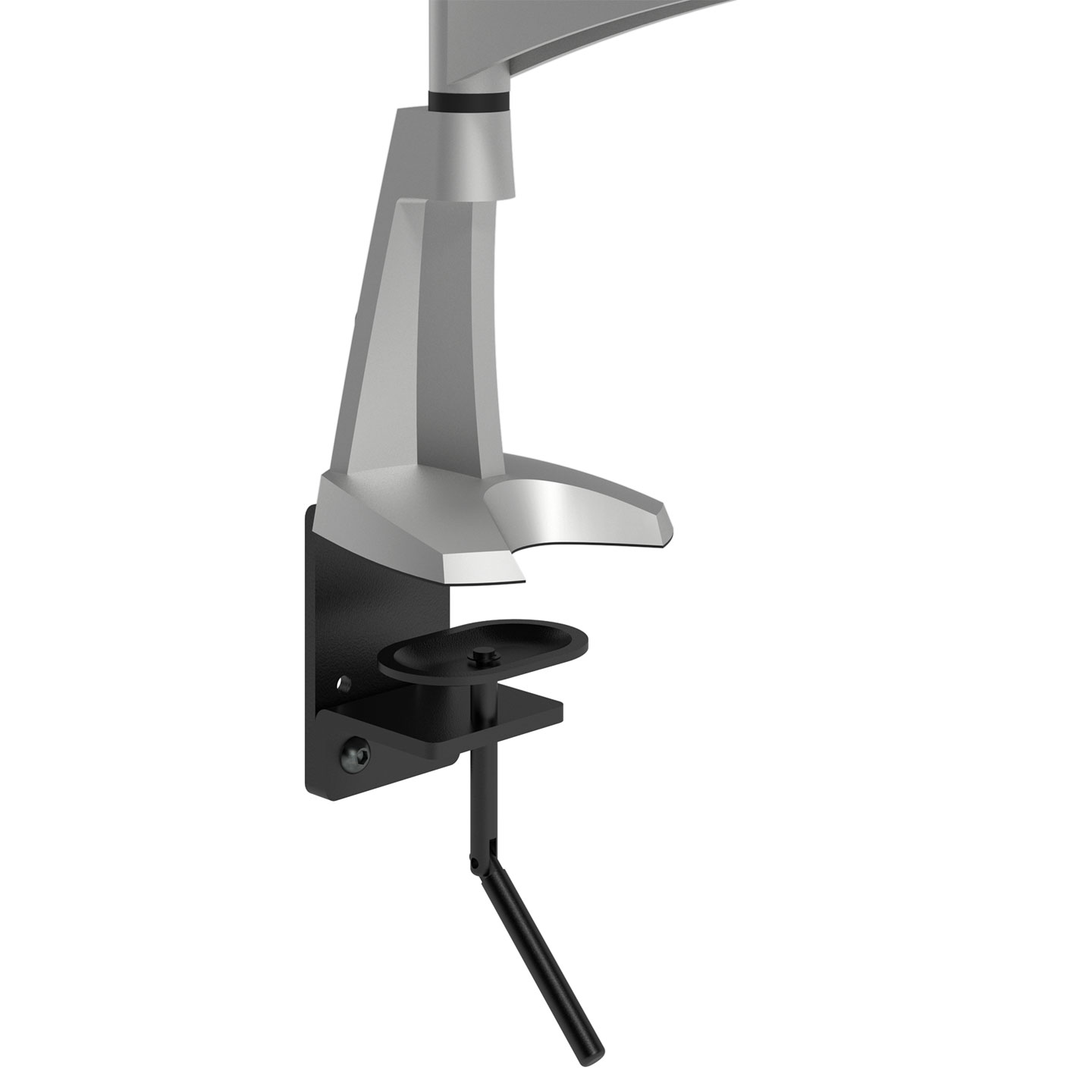

  • Comes with a desk clamp mount and bolt-through desk mount
  • Suitable for a desktop thickness of 5 up to 55 (0,2" - 2,2") (clamp) or 70 mm (2,8") (bolt through)
  • Monitor size limit: height 886 mm (34,9")
  • Built-in SUSPA® gas spring
Height adjustment range 305 mm (12,0")
Swivel range +90°/-55°
Tilt range +90°/-90°
Rotation range +5°/-5°
Maximum supported height of monitor 886 mm (34,9")
VESA compatability 75 x 75/100 x 100
Maximum supported weight of monitor 8 - 18 kg (18 - 40 lb)

Monitor check

Is this product suitable for your monitor? Do a quick check by filling in its details below.

For curved monitors, the tool may not provide a fully accurate recommendation. To ensure the right match, we are happy to provide personalized adivce. Please contact us.

If you do not find your monitor in this selection, please contact our support department.

1
2
Documentation

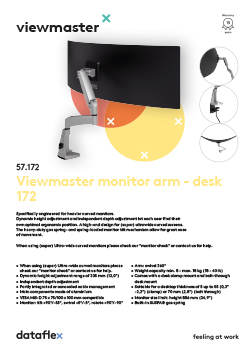

Product sheet
Product sheet
Product sheet

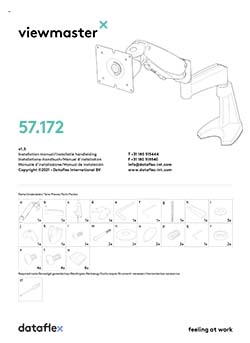

Installation manual
Installation manual
Installation manual
CAD data
CAD data
CAD data
Warranty
Warranty up to 15 years after registration
Up to 15 years warranty after registration*
SKU information
Product bar code
805410571726
Product colour
silver
Packaging dimensions
490 x 285 x 140 mm
Packaging weight
5,19 kg
